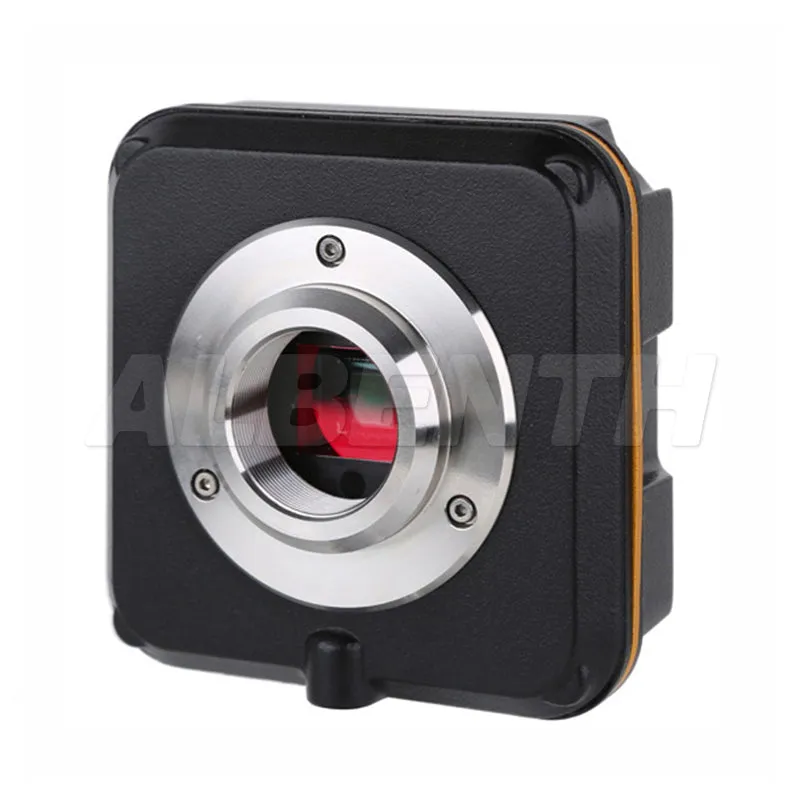

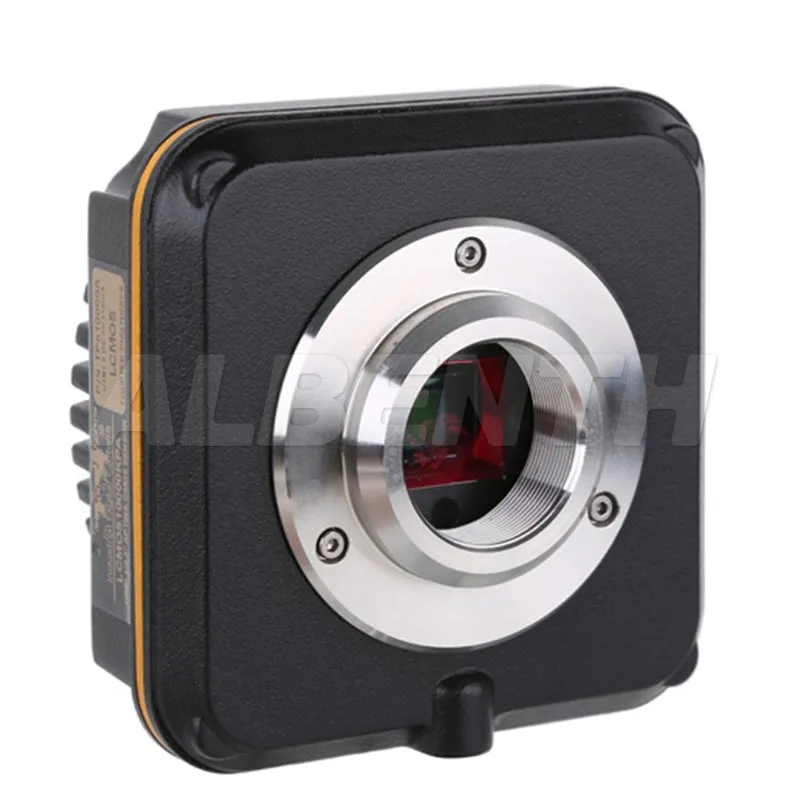

• Standard C-Mount camera with Aptina CMOS sensor;
• With hardware resolution among 1.2M to 14M;
• On-board memory for perfect synchronization，higher frame rate and stable performance;
• High-performance cooling structure ensures low image noise;
• USB3.0 5 Gbps interface ensuring high frame rate;
• Ultra-Fine color engine with perfect color reproduction capability;
• With advanced video & image processing application ToupView;
• Windows/Linux/macOS/Android multiple platform SDK;

• RT30UY-1M comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• The Camera can be widely used in brightfield light environments and microscope image capture and analysis.

•  Sensor & Size(mm): 1.2M/AR0130(C)                                                                                                       1/3"(4.8x3.6)
• Pixel(μm): 3.75x3.75
• G Sensitivity, Dark Signal: 5.5v/lux-sec
                                            85.3dB
                                            44dB
• FPS/Resolution:  45@1280x960
                             55@640x480
• Binning:  1x1,
                 2x2,

• Exposure: 0.1ms~20000ms

 Other Hardware Configuration:

• Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
• White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
• Color Rendering Technique: Ultra Fine Color Engine
• Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• Recording System: Still Picture and Movie
• Cooling System:  Natural

• Operating Temperature(in Centidegree) -10°C~ 50°C
• Storage Temperature(in Centidegree) -20°C~ 60°C
• Operating Humidity 30~80%RH
• Storage Humidity: 10~60%RH
• Power Supply:  DC 5V over PC USB Port

• Operating System: Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)OSx (Mac OS X) Linux PC Requirements:
• CPU: Equal to Intel Core2 2.8GHz or Higher,                                                                   Memory: 4GB or More                                                                                             USB Port: USB2.0 High-speed Port                                                                           Display: 17'' or Larger                                                                                               CD-ROM

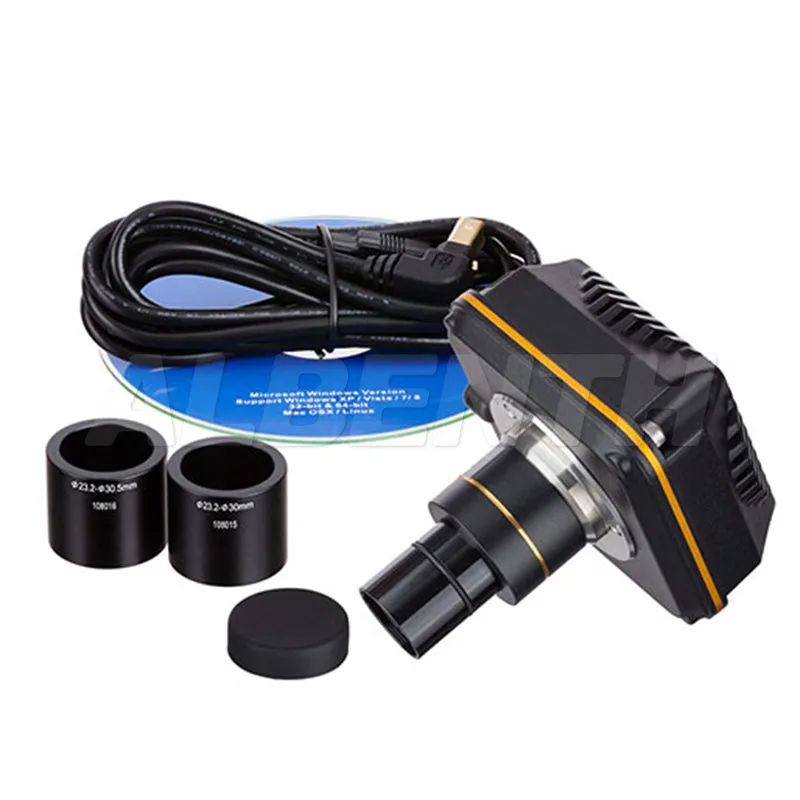

 What's in the Box?

• 1 pc RT30UY-1M USB3.0 High-performance Color CMOS C-Mount Microscope Camera
• 1 pc High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
• 1 pc CD (Driver & utility software, Ø12cm)
• 1 pc Fixed Reduction lens: 0. 5X ( For 23.2mm eyepieces tube)
• 1 pc Adaptor ring for 30mm eyepiece tube
• 1 pc Adaptor ring for 30.5mm eyepiece tube

 Delivery time:

• Around 2-3days

 Shipping way:

• Standard Free shipping By UPS, FedEx, TNT, DHL (Around 4-8days)
