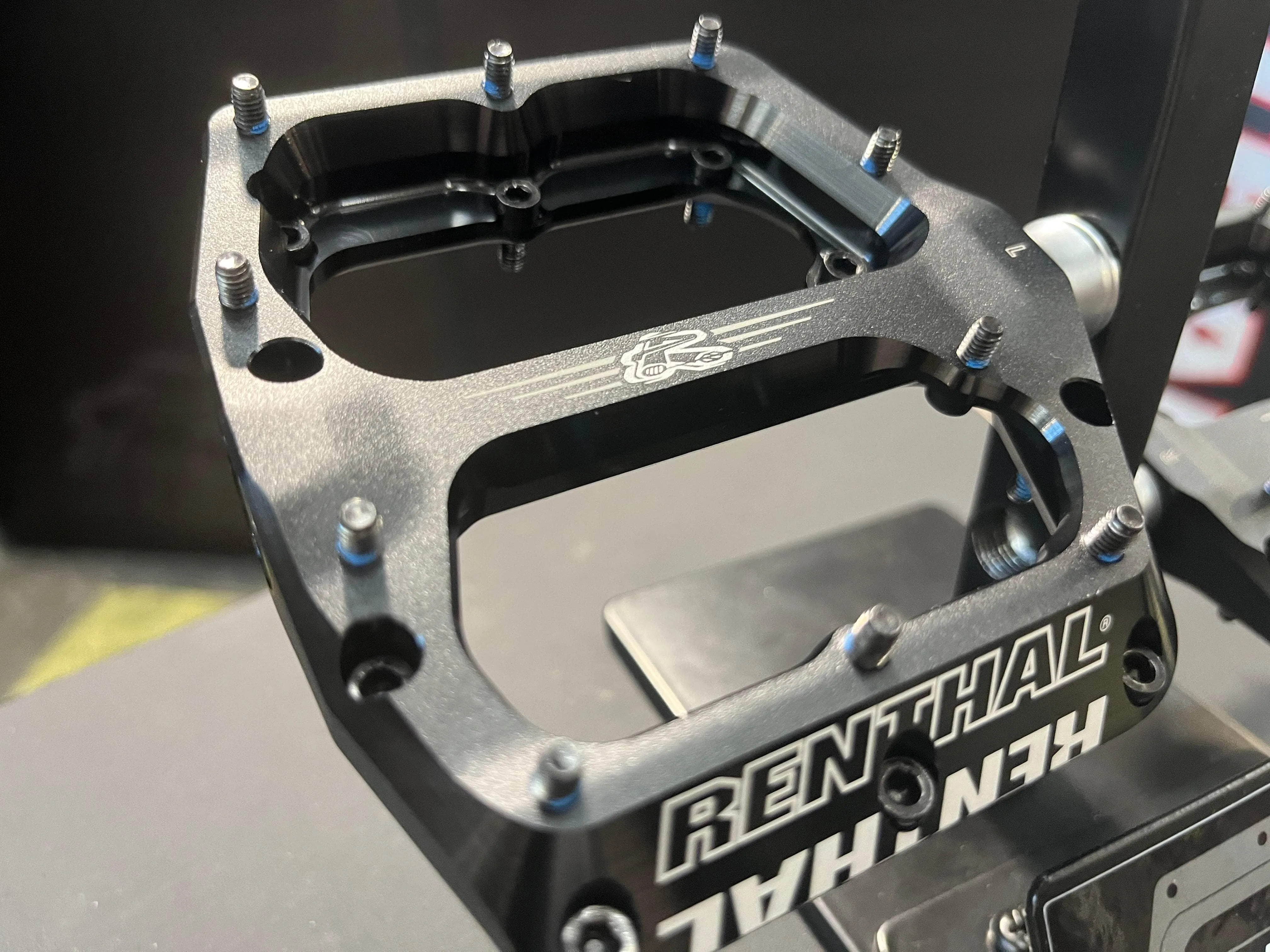

Renthal are proud to introduce the all-new Revo-F flat pedals.

Designed from the ground up, Renthal’s first pedal product is packed with unique features and innovative, patent-pending, technology.

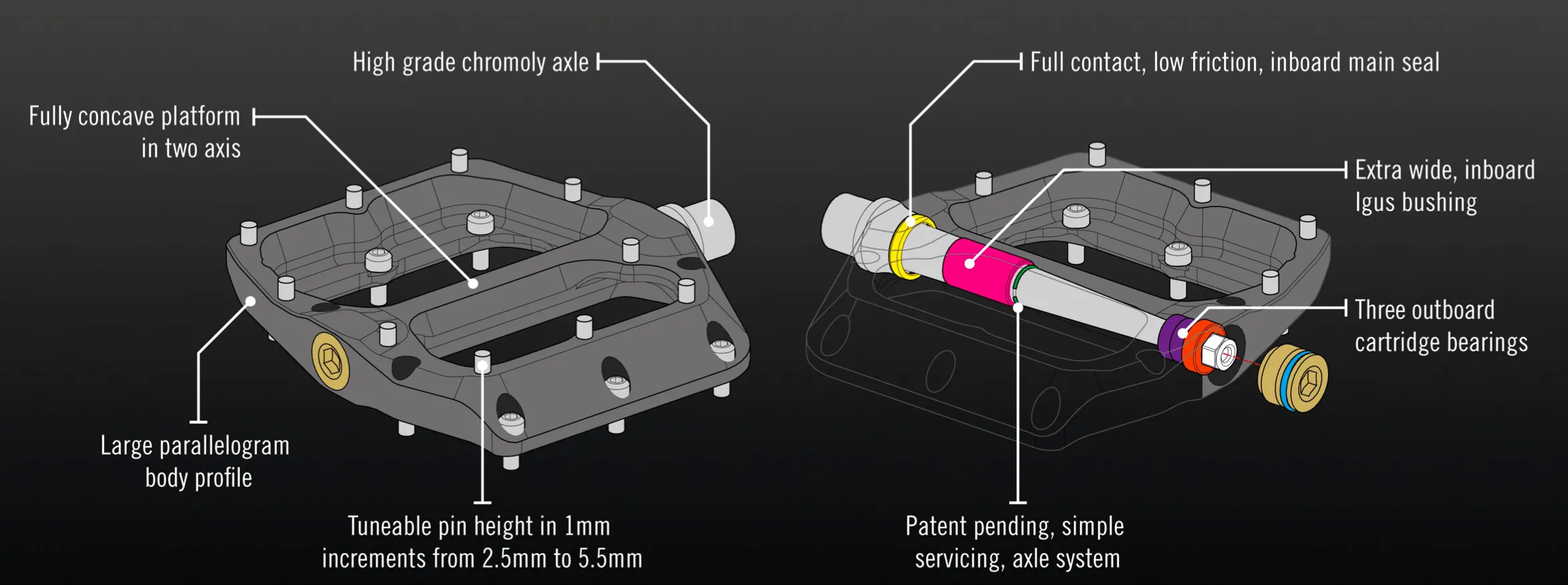

• Genuine concave platform in both axis. L-100mmxW-104mm.
• Ten pins per side, all screw-through type.
• Asymmetric pin positioning and increased axle width, for maximum usable platform.
• Adjustable pin length from 2.5mm to 5.5mm, in 1mm increments.

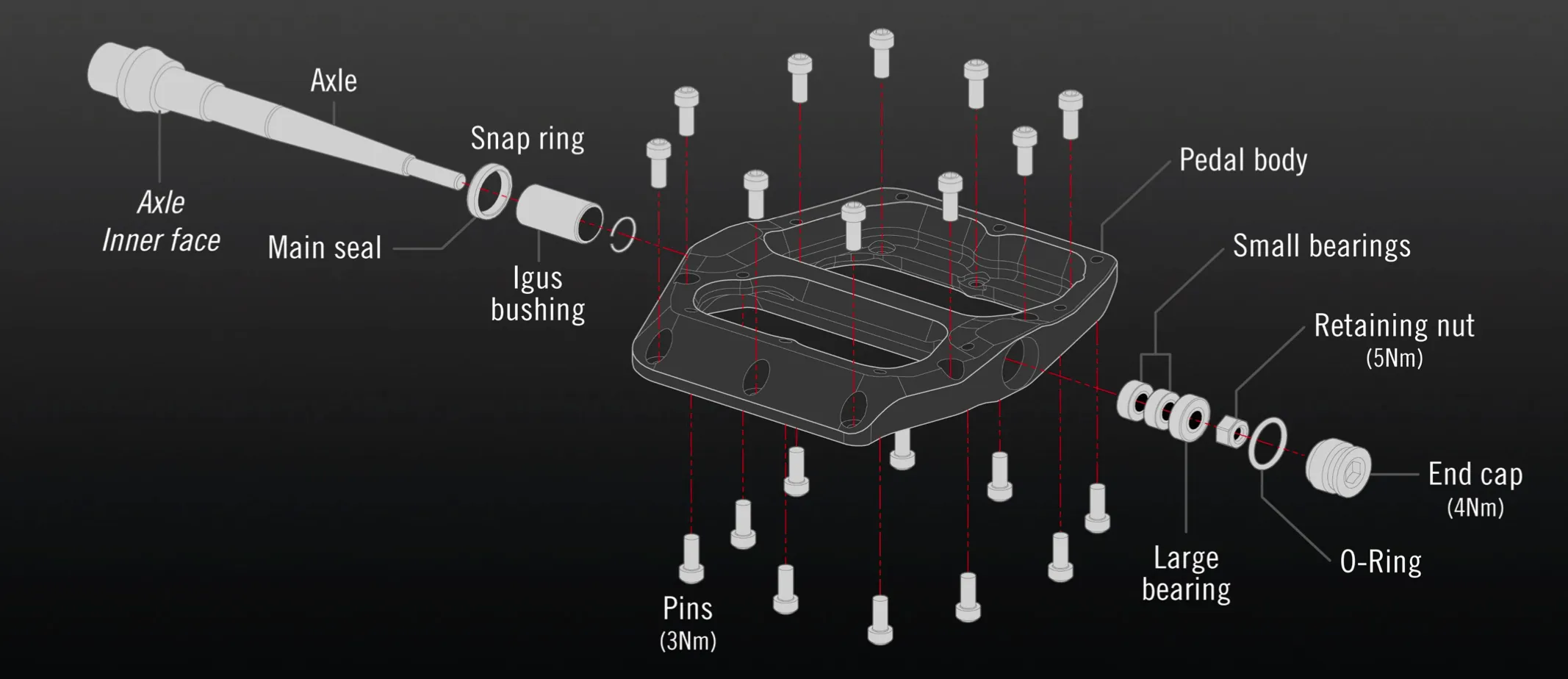

• Three outboard cartridge bearings and extra wide inboard IGUS bush.
• Fully sealed within board, full contactlip-seal and O-ringend-capseal.
• Renthal patent pending axle system allows home servicing, without specialist tools.
• Forged and CNC machined 6061 aluminium pedal body.
• High-grade chromoly axle.

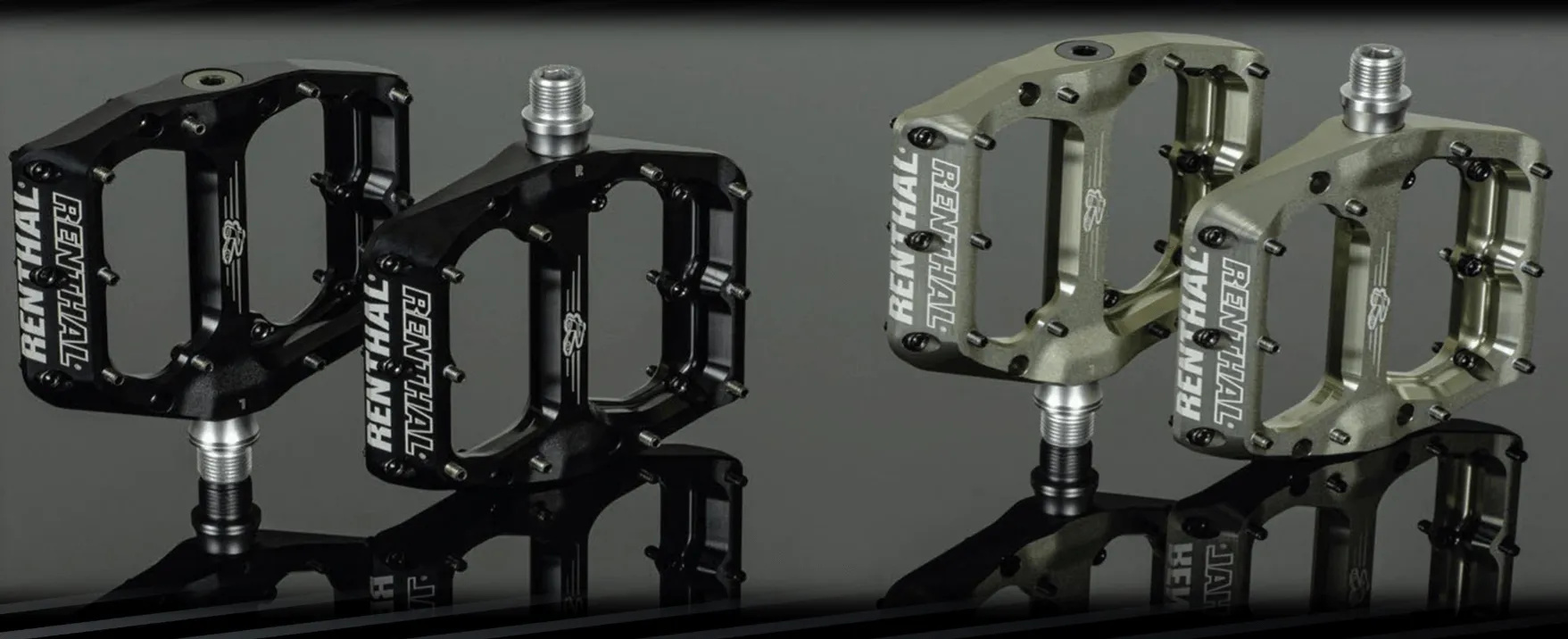

• Black or AluGold anodised finish, with contrasting surface textures.
